QUICKPOWER 1230

Products > Collecting vineyard prunings and trimmings


Recommendation EIMA 2005 - Technical novelty FIMA 2006

Round baler for cut vine branches designed for rows more than 1600 mm wide

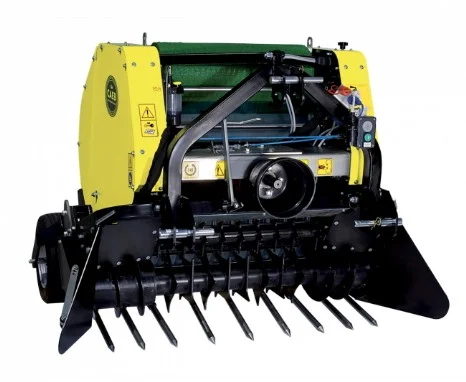

QUICKPOWER 1230

Optional features available:
1. Hydraulic pick-up system
The hydraulic pick-up must be fitted for all power units not equipped with the Ground Speed PTO. Should any material get stuck in the pick-up, it is possible to engage the hydraulic pick-up mechanism to “power out” the blockage.
2. Forks
The collecting forks, necessary when working on stony ground, prevent the transferring of rocks and stones inside the machine baling chamber.

3. Net for prunings
QUICKPOWER uses a special extruded PP (polypropylene) net for the wrapping operation, designed specifically to maintain compact the various types of cut vine branches. Alternatively it’s possible to wrap the bales with the SISAL natural twine. The bale produced has the following dimensions: height 600 mm - diameter 400 mm
4. Hydraulic swath brushes
When mounted, the brushes increase the pickup width.
5. Bale Transporter 8CM can carry eight bales (Recommendation EIMA 2008)
6. Bale Transporter 4CM can carry four bales


Movie - Brochure



TECHNICAL FEATURES

Height

1.000 mm

Width

1.310 mm

Length

1.160 mm

Weight

550 Kg

QUICKPOWER 1230 + Bale transporter 8CM + Swath brushes

Height with Bale Transporter 8CM
(including Quickpower)

from 1.700 mm
to 1.900 mm

Length with Bale Transporter 8CM
(including Quickpower)

2.550 mm

Width with swath brushes in closed position

1.880 mm

Width with swath brushes in open position

2.300 mm

QUICKPOWER 1230 + Bale transporter 4CM + Swath brushes

Height with Bale Transporter 4CM
(including Quickpower)

from 1.600 mm
to 1.700 mm

Length with Bale Transporter 4CM
(including Quickpower)

2.000 mm

Width with swath brushes in closed position

1.880 mm

Width with swath brushes in open position

2.300 mm



Accessories weight

Bale Transporter 8CM

235 Kg

Bale Transporter 4CM

195 Kg

Complete pair of swath brushes

62 Kg

Complete pick-up forks

32 Kg



Bale size

600 mm (H) x 400 mm Ø

Bale weight

25 - 35 kg

Quickpower 1230 with bale transporter 8CM

Quickpower 1230 with bale transporter4CM
Hay bale


POWER UNIT REQUIRED FEATURES

- double-acting hydraulic system
- 12 Volt supply system
- power at PTO ~ 15 kW and rotating speed ~ 350 rpm
- PTO with synchronized gear (to clear a flooded engine)

N.B. The machine's weight without accessories exceeds 500 Kg, therefore use a power unit of suitable weight.
